Hammer Drill Hard Rock Drilling Equipment , ZGYX - 425 Water Borehole Drilling Rig

Putian Qideli Drilling Tools Co., Ltd.

Hammer Drill Hard Rock Drilling Equipment , ZGYX - 425 Water Borehole Drilling Rig

Brand Name : ZEGA

Model Number : ZGYX-425

Certification : SGS、ISO: 9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 600PCS/Year

Delivery Time : 5-8 work days

Packaging Details : standard packing

Hole Range : 76~115mm

Hole Depth : 25m

Drill pipe length : 3660

Weight : 17800kg

Dimensions : 12050*2370*3300mm

F.A.D : 8 m3 / min

Working Pressure(MAX) : 10bar

Drill pipe specifications : T45 、T51*3.66m

Contact Now

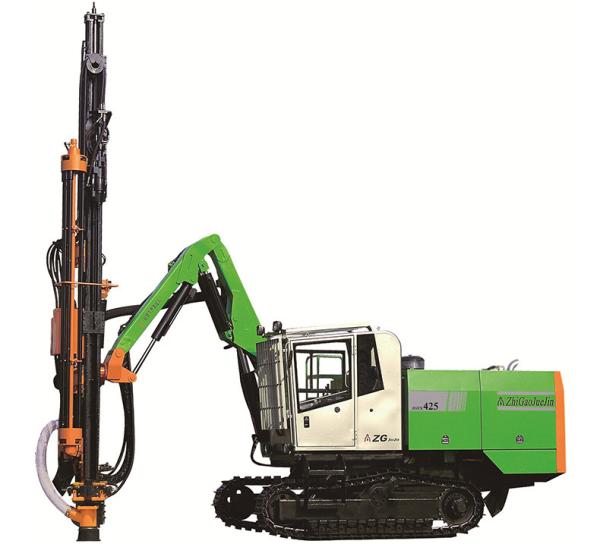

ZGYX-425 Automatic All-in-one Open-top Hammer Drill

Product Information Description

This series of products is a drilling rig developed and manufactured by zhejiang zhigao machinery co., LTD. Its standard is equipped with a cab and an automatic drill changing mechanism, with leveling and a special toothed crawler, and walking mechanism, which makes the drill has excellent off-road capability. Equipped with two-stage dust removal function can meet the environmental protection requirements of all mines, and the products are widely used in various engineering construction and mining. With its characteristics of high efficiency, energy saving, environmental protection and safety, it is widely selected by modern green mines.

Hammer Drill Hard Rock Drilling Equipment , ZGYX - 425 Water Borehole Drilling Rig

Hammer Drill Hard Rock Drilling Equipment , ZGYX - 425 Water Borehole Drilling Rig

Hammer Drill Hard Rock Drilling Equipment , ZGYX - 425 Water Borehole Drilling Rig

1. Independent preheating device of diesel engine and the automated hydraulic system make the rigs better suited for high altitude and cold climates.

2. The drifter's damping mechanism and anti-jamming.system guarantee stable and efficient driling.

3. The combination of oil cylinder and no. 1 and no. 2 drill arm can easily meet the requirements of drilling in various landforms with multiple angles.

4. Simple but efficient rod handling system consists of reach sensor, mechanic gripper, rod lubrication.device and rod gripper.

5. nomic comfortable extra safe cabin.

1) American and European labors' roof safety standard compliance.

2) Clear and wide view, and environmental friendly glass.
3) All around visibility, low vibration and low noise design made to optimum comfort..
4) Standard Stereo and air conditioning system ensure the operator a relaxed and.enjoyable workplace.

6. Caterpillar or Cummins enaine with global warranty to meet various demands.

7. The enlarged walking motor, the body leveling mechanism and have the function of high and low two-speed walking, flexibly adapt to various complex terrain.

Main Technical Parameters

ZGYX-425 Parameter List
Rock drilling machine

Drill and propeller

Model number ZY-104 Drill boom Angle "-42º~+73º
Manufacturer ZGYX Swing arm Angle Left 26º Right 27º
Drill diameter (mm) 76~115 Elevation Angle Before 99º After36º
Slewing Speed(r/min) 0~135 Pendulum Angle Left95º Right15º

Max rotary torque (N.m.)

1460

Drill stroke (mm)

4200

Max impact frequency (HZ)

60

Driving force/lifting force (kn)

22
Drill pipe T45,T51*3.66m

Propulsion compensation (mm)

1400
Hole deep(m) 25 Total length of propeller (mm) 7257

Max impact power (kw)

20 Drill pipe Length 3660
Engine Bar changer 6+1 standard
Manufacturer Caterpillar Model number C7
Rated power (kw) 168 Ground clearance (mm) 460
Operating revolution (RPM) 2200 Track frame swing Angle ±10º
Fuel tank capacity (L) 310 Max travel speed (km/h) 3.2
Screw air compressor Weight and size
Manufacturer ZGYX

Width (mm)* width (mm)

2370*12050
Head factory GHH Height (mm) 3300
Exhaust air rate 8m3/min Weight(KG) 17800
Air Pressure(Max) 10 bar

Maximum traction force (kn)


150

FAQ

1. How can i place an order?

Please provide the product specification, requirement and quantity you need,We will contact with you at the first time.

We can communicate through Wechat/Skype/WhatsApp/Email to facilitate our more efficient communication.

2. What kind of engineering equipment and drilling tools do we provide?

Drilling Equipment:

① Drilling rig ② Water well drilling rig ③ Integrated drilling rig

④ Hydraulic tunneling drilling rig ⑤ Air compressor

Drilling Tools:

① DTH hammer ② DTH bits ③ Drilling rod

④ Top hammer bits ⑤ Shank adapter ⑥ Taper bits

⑦ Taper rods

3. How about the warranty ?

Guarantee according to industry standard.

4. What is your terms of delivery?

We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
